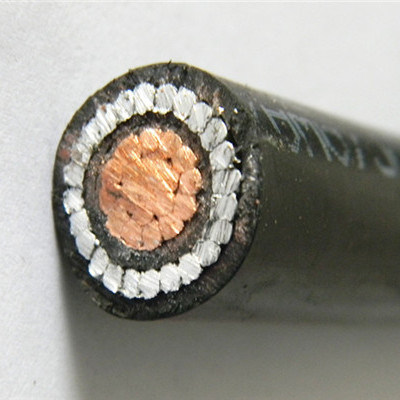

Fire Resistant Cables Copper Conductor XLPE Insulated with Aluminum Wire Armoured AWA
Certificates:
1. Application for Fire Resistant Cables Copper Conductor XLPE Insulated
- This cable is specially designed for areas where integrity of electrical circuit is critical to maintain the power supply. Application usage can be found in:- emergency lightings, control and power circuits, fire alarm systems, communication systems, lifts and escalators, power stations, underground tunnels, sewage treatment plans, high-rise buildings, mass transit underground passenger systems, airports, petrochemical plants, hotels, hospitals,etc.
- 2. Construction for Fire Resistant Cables Copper Conductor XLPE Insulated
| Conductor | : | Plain Annealed, Stranded Circular Non - Compacted or Circular Compacted or Shaped Copper |
|---|---|---|
| Fire Barrier | : | Mica Tape |
| Insulation | : | XLPE (For FR-200) or LSOH (For FR-300) |
| Sheath | : | LSOH |
| Insulation Colour | : | 2C - Brown & Blue 3C - Brown, Black & Grey 4C - Brown, Black, Grey & Blue 2C+E - Brown, Blue + Green/Yellow 3C+E - Brown, Black, Grey + Green/Yellow 4C+E - Brown, Black, Grey, Blue + Green/Yellow 5C & above - White Cores Printed With Number |
| Sheath Colour | : | As Request |
3. Technical Data for Fire Resistant Cables Copper Conductor XLPE Insulated
| Applicable Standard | : | IEC 60502-1 |
|---|---|---|
| Rated Voltage | : | 600/1000V |
| Testing Voltage | : | 3.5KV / 5 min |
| Operating Temperature | : | Max 90º C |
4. Model Explanation for Fire Resistant Cables Copper Conductor XLPE Insulated
| Cable Model | Descriptions for Power Cable | Applications for (Fire Resistant Electric Power Cable) | |
| Cu Core | Al Core | ||
| YJL YJVR(YJRV) | YJLV | XLPE insulated and PVC sheathed (flame-retardant) power cable | This type of electric power cable can be laid indoors and outdoors, such as tunnel, cable duct, loose soil, etc. It can not bear external mechanical force, but a certain tensile force can be applied during laying. In addition, the single core type is not allowed to be installed in magnetic pipes. |
| YJV22 | YJLV22 | XLPE insulated, steel tape armored and PVC sheathed (flame-retardant) power cable | This type of electric power cable can be placed outdoors, and burying in the ground is also suitable. Meanwhile, external mechanical force is applicable, but big tensile force is forbidden. |
| YJV32 | YJLV32 | XLPE insulated, thin steel wire armored and PVC sheathed (flame-retardant) power cable | This type of electric power cable is used in water, vertical well or places with high drop height, and it can bear external mechanical force and fairly large tensile force. |
| YJV42 | YJLV42 | XLPE insulated, thick steel wire armored and PVC sheathed (flame-retardant) power cable | This type of power cable can be laid in vertical well, sea floor or places with high drop height. Pretty big positive pressure and tensile force are both applicable. |
